racing-game
All code (as of 4/1/18) in the racing-game project written by Jonathan Lam and/or Rahul Kiefer, compiled for use in the AP CSP Create PT.
Directory structure of necessary project files (* indicates a file/directory of code that we did not write, and therefore did not include as one of the files below), in order of the included files below:
- node_modules *
- package.json
- Procfile
- server.js
- public/
- index.html
- game.html
- js
- three.js *
- index.js
- game.js
- hostGraphics.js
- clientGraphics.js
- css
- main.css
- index.css
- host.css
- client.css
- assets
- map
- map1.png
- map2.png
- blacktop_texture.jpg
- dawnmountain-xneg.png
- dawnmountain-xpos.png
- dawnmountain-yneg.png
- dawnmountain-ypos.png
- dawnmountain-zneg.png
- dawnmountain-zpos.png
- grass_texture.jpg

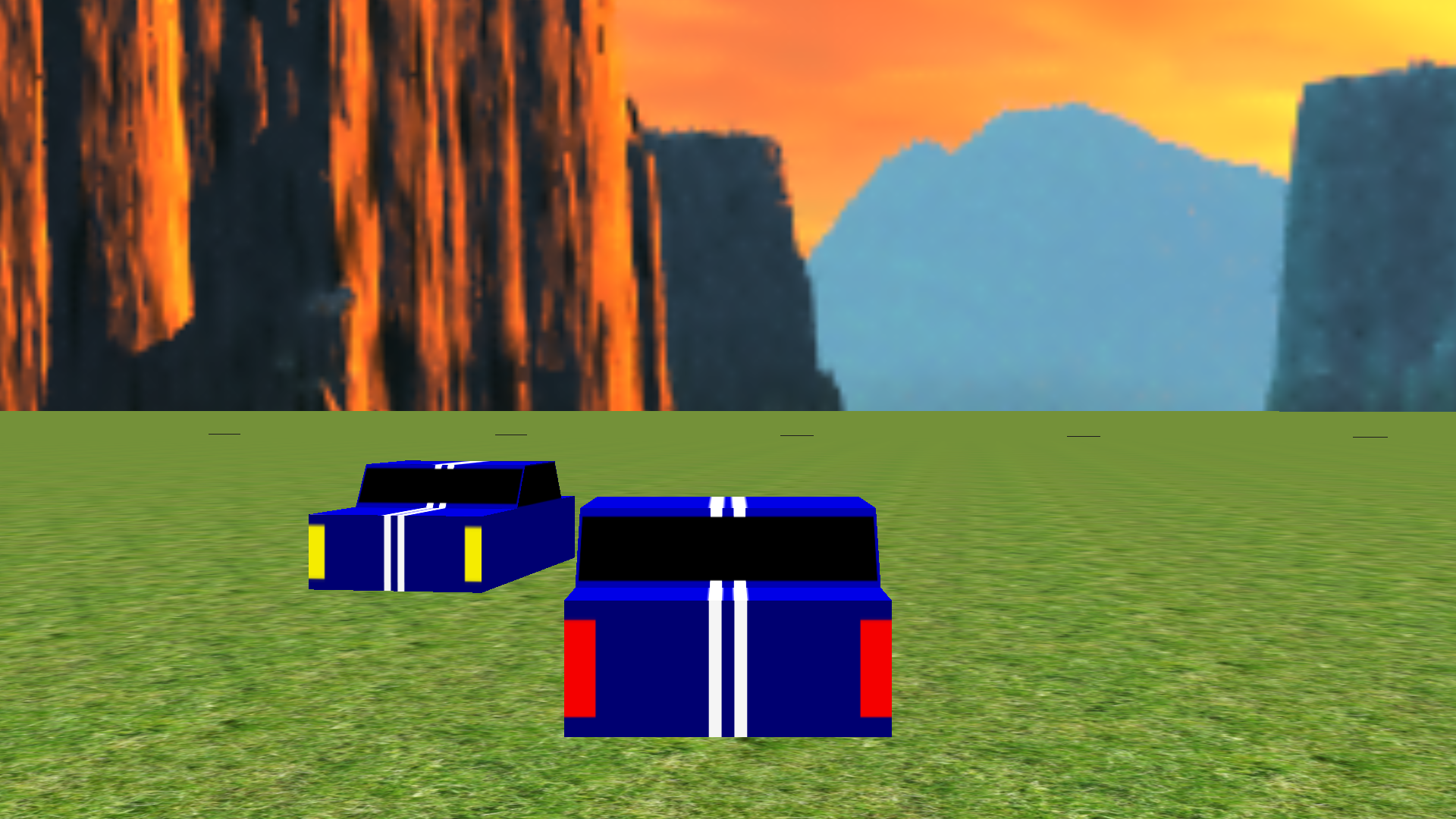

- loading_bg.png
package.json (information necessary for Node.js); author: Jonathan Lam
{
"name": "racing-game",
"description": "Multiplayer racing game for AP CSP Create task. Hosted online at https://racing-game-csp.herokuapp.com with Heroku hosting.",
"contributors": [
"Jonathan Lam <jonathan.lam@er9.org> (http://jonathanlam.tech)",
"Rahul Kiefer <rahul.kiefer@er9.org>"
],
"version": "0.0.1",
"keywords": "multiplayer, racing, game, CSP, computer science principles, jonathan lam, rahul kiefer",
"dependencies": {
"express": "4.16.0",
"express-session": "^1.15.6",
"express-socket.io-session": "^1.3.2",
"socket.io": "^2.0.4"
},
"repository": {
"type": "git",
"url": "https://www.github.com/jlam55555/racing-game.git"
},
"license": "MIT"
}
Procfile (information necessary for Heroku hosting); author: Jonathan Lam
web: node server.js
server.js (server script; handles routing and socket.io); author: Rahul Kiefer and Jonathan Lam
/**
* Basic app routing using express
* @author Jonathan Lam
*/
// express and http packages for basic routing
var express = require('express');
var app = express();
var http = require('http').Server(app);
// set port to environment-defined port or 5000 (default)
http.listen(
process.env.PORT || 5000,
() => console.log(`Listening on port ${process.env.PORT || 5000}.`));
/**
* Get socket.io dependency
* @author Jonathan Lam
*/
// socket.io for real-time WebSocket communication
var io = require('socket.io')(http);
var session = require('express-session')({
secret: 'test-secret',
resave: true,
saveUninitialized: true
});
app.use(session);
var sharedsession = require('express-socket.io-session');
io.use(sharedsession(session, { autoSave: true }));
// callback to listen for io events
io.on('connection', socket => {
// handle when a person connects
console.log(`A user with socket id ${socket.id} has connected.`);
// sync up to express
socket.handshake.session.socketId = socket.id;
socket.handshake.session.save();
// handle when a person creates a new game
socket.on('createNewGame', callback => {
// make sure user is not already in a game
if(socket.handshake.session.gameId !== undefined) return;
// generate random id of five letters
var gameIdCharacters = 'abcdefghijklmnopqrstuvwxyz';
var gameId;
do {
gameId = '';
while(gameId.length < 5) {
gameId += gameIdCharacters.substr(Math.floor(Math.random() * gameIdCharacters.length), 1);
}
} while(Object.keys(rooms).indexOf(gameId) !== -1);
rooms[gameId] = { host: null, clients: [] };
callback(gameId);
});
// check if user is host
socket.on('isHost', callback => {
var hostInterval = setInterval(() => {
socket.handshake.session.reload(() => {
if(socket.handshake.session.host !== undefined) {
clearInterval(hostInterval);
callback(socket.handshake.session.host === true, socket.handshake.session.socketId);
}
});
}, 50);
});
// set a user's name
socket.on('setName', name => {
// get room, set name
var room = rooms[socket.handshake.session.gameId];
room.clients.find(client => client.socketId === socket.id).name = name;
// tell sockets to update names
io.to(socket.handshake.session.gameId).emit('updateNames', room.clients.map(client => client.name));
});
// handle device orientation input
socket.on('deviceOrientation', (forwardSpeed, turnSpeed) => {
// if not in game return
if(!socket.handshake.session.gameId) return;
// get correct client
var client = rooms[socket.handshake.session.gameId].clients.find(client => client.socketId === socket.id);
// if host return
if(!client) return;
// update client acceleration, heading
// acceleration is limited from -90 to +90
// heading is converted into radians
client.acceleration = -Math.max(-90, Math.min(90, forwardSpeed));
client.turn = Math.PI/180 * turnSpeed;
// prevent invalid accelerations and turn speeds
if(client.acceleration < -90 || client.acceleration > 90) client.acceleration = 0;
if(client.turn < -90 || client.turn > 90) client.turn = 0;
});
// handle when a person disconnects
socket.on('disconnect', () => {
console.log(`A user with socket id ${socket.id} has disconnected.`);
// delete room if host
if(socket.handshake.session.gameId !== undefined && socket.handshake.session.host === true) {
// delete room
delete rooms[socket.handshake.session.gameId];
// tell users to go away
io.to(socket.handshake.session.gameId).emit('terminateGame');
}
// delete person if client and if room exists
else if(socket.handshake.session.gameId !== undefined && socket.handshake.session.host === false) {
// only do if room exists (room may not exist because it is deleted when host leaves)
var room = rooms[socket.handshake.session.gameId];
if(room !== undefined) {
// delete client from room
room.clients = room.clients.filter(client => client.socketId !== socket.id);
// update room host
io.sockets.sockets[room.host.socketId].emit('updatedMap', room.clients);
// update other users
io.to(socket.handshake.session.gameId).emit('updateNames', room.clients.map(client => client.name));
}
}
// also remove from session
socket.handshake.session.gameId = undefined;
socket.handshake.session.host = undefined;
socket.handshake.session.save();
});
});
/**
* Do game updates (position, speed, acceleration (friction), and heading
* (turn)) every 10ms. This happens here to ensure every person moves at the
* same speed. The friction is calculated as a piecewise function (linear
* decceleration at high speeds, and a decceleration proportional to the
* speed at low speeds) to make the driving feel more realistic. The constants
* and multipliers were determined by trial and error to make the driving
* feel realistic.
* <p>
* Equations:
* - Update speed: newSpeed = oldSpeed + acceleration * accelerationMultiplier - friction
* - Friction: friction = { if |newSpeed| > frictionConstant * 1.5 then newSpeed > 0 ? -frictionConstant : frictionConstant
* if |newSpeed| < frictionConstant * 1.5 then newSpeed * 0.5
* - Update x position: newPlayerX = oldPlayerX + Math.cos(heading) * speed * speedMultiplier
* - Update y position: newPlayerY = oldPlayerY + Math.sin(heading) * speed * speedMultiplier
* - Update heading (direction): newPlayerHeading = oldPlayerHeading + turnSpeed * speed * turnMultiplier
* @author Jonathan Lam
*/
var accelerationMultiplier = 0.01; // fraction of the input acceleration that goes into the accleration
var speedMultiplier = 0.005; // fraction of the input speed that goes into the speed
var turnMultiplier = 0.0002; // fraction of the input turn that goes into the turn
var highSpeedFrictionConstant = 0.25; // linear decceleration of car at high speeds
var lowSpeedFrictionMultiplier = 0.1; // fraction of the speed that the friction will go against
setInterval(() => {
// update every game room
for(var room of Object.keys(rooms)) {
for(var client of rooms[room].clients) {
// update player speed
client.speed += client.acceleration * accelerationMultiplier;
// bound player speed between -180 and +180
if(client.speed < -90) client.speed = -90;
if(client.speed > 90) client.speed = 90;
// calculated simulated friction and add to speed
var friction = (Math.abs(client.speed) > highSpeedFrictionConstant * 1.5)
? (client.speed > 0 ? 1 : -1) * highSpeedFrictionConstant
: client.speed * lowSpeedFrictionMultiplier;
client.speed -= friction;
// update player position (depends on heading)
client.x += Math.cos(client.heading) * client.speed * speedMultiplier;
client.y += Math.sin(client.heading) * client.speed * speedMultiplier;
// update player heading (turn speed is proportional to the speed and angle of turn)
client.heading += client.turn * client.speed * turnMultiplier;
}
// send data to host
var socket;
if(rooms[room].host && (socket = io.sockets.sockets[rooms[room].host.socketId]) !== undefined) {
socket.emit('updatedMap', rooms[room].clients);
}
// send data to clients
for(var client of rooms[room].clients) {
if((socket = io.sockets.sockets[client.socketId]) !== undefined) {
socket.emit('updatedMap', rooms[room].clients);
}
}
}
}, 10);
/**
* Rooms to allow people to play multiplayer
* @todo add verification that server is created, number of people is less than 3
* @author Jonathan Lam
*/
var rooms = {};
/*
room format: {
host: [hostId],
clients: [arrayOfClientIds]
}
client format: {
name: [name],
id: [sessionId],
x: [xPosition],
y: [yPosistion],
z: 0 (for now),
heading: [heading]
}
*/
app.get('/game/:gameId', (req, res, next) => {
// send to game file
res.sendFile(`${__dirname}/public/game.html`);
// get gameid parameter
var gameId = req.params.gameId.toLowerCase();
var socket;
// sync up to socket to join room (keep refreshing until socketId is updated)
var syncInterval = setInterval(() => req.session.reload(() => {
if(req.session.socketId !== undefined && (socket = io.sockets.sockets[req.session.socketId]) !== undefined) {
clearInterval(syncInterval);
// error 1: room does not exist
if(Object.keys(rooms).indexOf(gameId) === -1) {
socket.emit('err', `Game room "${gameId}" does not exist.`);
return;
}
// error 2: room has more than four people in it
if(rooms[gameId].clients.length > 3) {
socket.emit('err', `Game room "${gameId}" is already full.`);
return;
}
// error 3: user is already in the game
if(rooms[gameId].clients.find(client => client.sessionId === req.session.id) !== undefined || (rooms[gameId].host && rooms[gameId].host.sessionId === req.session.id)) {
socket.emit('err', 'You are already in this game on another tab.');
return;
}
// add gameId to session, session id to game room
req.session.gameId = gameId;
// if first person, then host; if not, then client
if(rooms[gameId].host === null) {
rooms[gameId].host = {
sessionId: req.session.id,
socketId: socket.id
};
req.session.host = true;
} else {
// create default client
rooms[gameId].clients.push({
sessionId: req.session.id,
socketId: socket.id,
name: null,
x: 0,
y: 0,
z: 0,
acceleration: 0,
speed: 0,
heading: 0,
turn: 0
});
req.session.host = false;
}
req.session.save();
// join game room
socket.join(gameId);
socket.emit('gameId', gameId);
io.to(gameId).emit('updateNames', rooms[gameId].clients.map(client => client.name));
console.log(`A user with socket id ${socket.id} has joined the room ${gameId}.`);
}
}), 50);
});
/**
* Static serving in express for resources (*.css, *.js)
* @author Jonathan Lam
*/
app.use(express.static('public'));
public/index.html (HTML for landing page); author: Rahul Kiefer and Jonathan Lam
<!--
Basic HTML layout
@author Jonathan Lam
-->
<!doctype html>
<html>
<head>
<title>Racing Game</title>
<!--
meta tags for site crawling
@author Jonathan Lam
-->
<meta charset='utf-8'>
<meta name='description' content='Multiplayer racing game for AP CSP Create task'>
<meta name='author' content='Jonathan Lam <jonathan.lam@er9.org>, Rahul Kiefer <rahul.kiefer@er9.org>'>
<meta name='keywords' content='multiplayer, racing, game, CSP, computer science principles, jonathan lam, rahul kiefer'>
<!--
Set the viewport for responsive web design on mobile
This doesn't work too well, so commented it out
@author Jonathan Lam
-->
<!-- <meta name='viewport' content='width=device-width, initial-scale=1.0'> -->
<!--
include stylesheets
@author Jonathan Lam
-->
<link rel='stylesheet' href='css/main.css'>
<link rel='stylesheet' href='css/index.css'>
<!--
include FontAwesome icon set (to make website look pretty)
See https://fontawesome.com/ for more information
@author Jonathan Lam
-->
<script defer src='https://use.fontawesome.com/releases/v5.0.8/js/all.js' integrity='sha384-SlE991lGASHoBfWbelyBPLsUlwY1GwNDJo3jSJO04KZ33K2bwfV9YBauFfnzvynJ' crossorigin='anonymous'></script>
<!--
include socket.io library for use of WebSockets/long-polling to communicate in real time with server
See https://socket.io/ for more information
@author Jonathan Lam
-->
<script src='/socket.io/socket.io.js'></script>
<!--
include main script
@author Jonathan Lam
-->
<script src='/js/index.js' defer></script>
</head>
<body>
<!--
Create a room for hosts
@author Jonathan Lam
-->
<div class='deviceTypeContainer' id='desktopContainer'>
<!--
Link to GitHub for information and code
@author Jonathan Lam
-->
<a id='infoLink' title='Click to see more information and the source on GitHub.' href='https://github.com/jlam55555/racing-game' target='_blank'>
<i class='fas fa-info-circle'></i>
</a>
<div class='deviceTypeIcon'>
<i class='fas fa-desktop'></i>
</div>
<button id='createGame'>CREATE GAME</button>
</div>
<!--
Join a room for mobile
@author Jonathan Lam
-->
<div class='deviceTypeContainer' id='mobileContainer'>
<div class='deviceTypeIcon'>
<i class='fas fa-mobile'></i>
</div>
<div id='joinGameContainer'>
<input type='text' id='joinGameId' placeholder='GAME ID'>
<button id='joinGame'>JOIN GAME</button>
</div>
</div>
</body>
</html>
public/game.html (HTML for gameplay page); author: Rahul Kiefer and Jonathan Lam
<!--
Basic HTML layout
@author Jonathan Lam
-->
<!doctype html>
<html>
<head>
<title>Racing Game</title>
<!--
meta tags for site crawling
@author Jonathan Lam
-->
<meta charset='utf-8'>
<meta name='description' content='Multiplayer racing game for AP CSP Create task'>
<meta name='author' content='Jonathan Lam <jonathan.lam@er9.org>, Rahul Kiefer <rahul.kiefer@er9.org>'>
<meta name='keywords' content='multiplayer, racing, game, CSP, computer science principles, jonathan lam, rahul kiefer'>
<!--
Set the viewport for responsive web design on mobile
This didn't work too well, so commented it out for now
@author Jonathan Lam
-->
<!-- <meta name='viewport' content='width=device-width, initial-scale=1.0'> -->
<!--
include stylesheets
@author Jonathan Lam
-->
<link rel='stylesheet' href='/css/main.css'>
<link rel='stylesheet' href='/css/host.css'>
<link rel='stylesheet' href='/css/client.css'>
<!--
include socket.io library
@author Jonathan Lam
-->
<script src='/socket.io/socket.io.js'></script>
<!--
include three.min.js library
See https://threejs.org/ for more information
@author Rahul kiefer
-->
<script src='/js/three.js/three.js'></script>
<!--
include THREE.js line library files (not included in main THREE.js library) to make race track
Source: https://github.com/mrdoob/three.js/tree/cb4c23fea8b667b6126635be64825d0cc1fa5f4b/examples/js/lines
@author Rahul Kiefer
-->
<script src='/js/three.js/line/LineSegmentsGeometry.js'></script>
<script src='/js/three.js/line/LineGeometry.js'></script>
<script src='/js/three.js/line/WireframeGeometry2.js'></script>
<script src='/js/three.js/line/LineMaterial.js'></script>
<script src='/js/three.js/line/LineSegments2.js'></script>
<script src='/js/three.js/line/Line2.js'></script>
<script src='/js/three.js/line/Wireframe.js'></script>
<!--
include FontAwesome icon set (to make website look pretty)
@author Jonathan Lam
-->
<script defer src='https://use.fontawesome.com/releases/v5.0.8/js/all.js' integrity='sha384-SlE991lGASHoBfWbelyBPLsUlwY1GwNDJo3jSJO04KZ33K2bwfV9YBauFfnzvynJ' crossorigin='anonymous'></script>
<!--
Includes the graphics script.
<p>
hostGraphics.js is for the computer (host). This includes views for all players, and sets up the basic scene.
<p>
clientGraphics.js is for the mobile device (client). This includes a simplified, single viewport that is shown on mobile devices.
@author Rahul Kiefer
-->
<script src='/js/hostGraphics.js' defer></script>
<script src='/js/clientGraphics.js' defer></script>
<!--
include main script
@author Jonathan Lam
-->
<script src='/js/game.js' defer></script>
</head>
<body>
<!--
Controls div on left
@author Jonathan Lam
-->
<div id='controls'>
<!-- Show names (these are absolutely positioned over the canvas) -->
<div id='names'></div>
<!-- Link to return to homepage -->
<a id='homeLink' href='/' class='vCenter'>
<span class='fas fa-chevron-circle-left'></span>
</a>
<!-- Shows errors if they exist on entry -->
<div id='error' class='vCenter'></div>
<!-- Show game ID -->
<div id='gameIdContainer' class='vCenter'>
<span id="gameIdInnerContainer">
ID: <span id='gameId'></span>
</span>
</div>
</div>
<!--
Main canvas on right
@author Jonathan Lam
-->
<div id='game'></div>
</body>
</html>
public/js/index.js (script for landing page); author: Jonathan Lam
/**
* This file is for the homepage.
*/
/**
* Connect to socket.io
* @author Jonathan Lam
*/
var socket = io();
/**
* Create a game when button is clicked
* @author Jonathan Lam
*/
var createGameButton = document.querySelector('#createGame');
createGameButton.addEventListener('click', () => {
// redirect to page on click
socket.emit('createNewGame', newGameId => {
window.location.href = `${window.location.href}game/${newGameId}`;
});
});
/**
* Join a room when button is clicked
* @author Jonathan Lam
*/
var joinGameId = document.querySelector('#joinGameId');
var joinGameButton = document.querySelector('#joinGame');
joinGameButton.addEventListener('click', () => {
if(joinGameId.value.trim() !== '') {
window.location.href = `${window.location.href}game/${joinGameId.value}`;
}
})
/**
* Make recommendation
* @author Jonathan Lam
*/
// if large window size or deviceorientationevent not supported, recommend host
if(window.innerWidth >= 1920 || !window.DeviceOrientationEvent) {
document.querySelector('#desktopContainer').classList.add('recommended');
}
// else recommend client
// this double-checks if deviceorientationevent works (and if it doesn't, recommends desktop)
else {
if(window.DeviceOrientationEvent) {
window.addEventListener('deviceorientation', event => {
if(event.alpha === null) {
document.querySelector('#desktopContainer').classList.add('recommended');
} else {
document.querySelector('#mobileContainer').classList.add('recommended');
}
});
} else {
document.querySelector('#mobileContainer').classList.add('recommended');
}
}
public/js/game.js (script for gameplay, excluding graphics); author: Rahul Kiefer and Jonathan Lam
/**
* This file is for the game (excluding graphics).
*/
/**
* Connect to socket.io
* @author Jonathan Lam
*/
var socket = io();
// get game id to show on element #gameId
socket.on('gameId', gameId => {
var gameIdText = "";
var gameIdChars = gameId.split("");
for(var char of gameIdChars) {
gameIdText += `<span class='gameIdChar'>${char.toUpperCase()}</span>`;
}
document.querySelector('#gameId').innerHTML = gameIdText;
});
/**
* Get errors on joining room
* @author Jonathan Lam
*/
socket.on('err', msg => {
document.querySelector('#gameIdContainer').style.display = 'none';
document.querySelector('#names').style.display = 'none';
document.querySelector('#error').textContent = `Error: ${msg}`;
});
/**
* Get name if client
* @author Jonathan Lam
*/
var isHost;
var socketId;
socket.emit('isHost', (isHostResponse, socketIdResponse) => {
if(!isHostResponse) {
// ask for name, send to server
var defaultNames = ["Richard","Rasmus","Tony","Aubrey","Don Juan","Graham","Dennis","George","Ted","Rufus","Rami","Willem","Peter","Zack","Oscar","Rick","Brandon","Charlie","Louie","Phil","Nigel","Earl","Jones","Carl","Jake","Richter","Russell",
"Corey","Alex","Ash","Mark","Irvin","Dallas\n "]
var name = prompt('What is your name?', defaultNames[Math.floor(Math.random() * defaultNames.length)]);
socket.emit('setName', name);
// set socketId
socketId = socketIdResponse;
}
// set host flag (true if host, false if client)
isHost = isHostResponse;
});
/**
* Update name listing
* @author Jonathan Lam
*/
var namesElement = document.querySelector('#names');
socket.on('updateNames', names => {
/**
* Position name on top left of correct screen
* @author Jonathan Lam
*/
var positions;
switch(names.length) {
// one person joined: full screen
case 1:
positions = [ [ 0, 0 ] ];
break;
// two people in the game: side by side
case 2:
positions = [ [ 0, 0 ], [ width/2, 0 ] ];
break;
// three people in the game: top two side by side, bottom in center
case 3:
positions = [ [ 0, 0 ], [ width/2, 0 ], [ width/4, height/2 ] ];
break;
// four people in the game: top two side by side, bottom two side by side
case 4:
positions = [ [ 0, 0 ], [ width/2, 0 ], [ 0, height/2 ], [ width/2, height/2 ] ];
break;
// nobody joined; no positions
case 0:
default:
break;
}
var namesElement = document.querySelector('#names');
namesElement.innerHTML = '';
for(var i = 0; i < names.length; i++) {
var nameDiv = document.createElement('div');
nameDiv.classList.add('name');
nameDiv.style.left = positions[i][0] + 40 + 'px'; // added padding 40px
nameDiv.style.top = positions[i][1] + 40 + document.querySelector('#controls').clientHeight + 'px'; // added padding 40px plus height of controls
nameDiv.appendChild(document.createTextNode(names[i] || 'An unnamed driver'));
namesElement.appendChild(nameDiv);
}
// update cars and cameras
updateCars();
// if client
if(isHost !== undefined && !isHost) {
// overwrite main render function with client one
overwriteRender(socketId);
// add .mobile class to controls to transform it
document.querySelector('#controls').classList.add('mobile');
}
});
/**
* Terminate game (if host leaves)
* @author Jonathan Lam
*/
socket.on('terminateGame', () => {
window.location.href = '/';
});
/**
* If client, get orientation event and send to server
* Calculates forward speed from gamma (and beta), turn from beta
* @author Jonathan Lam
*/
window.addEventListener('deviceorientation', event => {
// only do this for client
if(isHost) return;
// adjusting the 'no pedal' position from flat to 45 degrees
var beta = event.beta;
var gamma = event.gamma + 45;
var forwardSpeed = 0, turnSpeed = 0;
// device facing upwards
if(Math.abs(beta) < 90) {
forwardSpeed = gamma;
turnSpeed = beta;
}
// device facing downwards -- put at extreme (-90 or 90)
else {
forwardSpeed = gamma < 0 ? 90 : -90;
turnSpeed = (beta < 0 ? -180 : 180) - beta;
}
// send in deviceorientation
// comment this for testing on desktop
socket.emit('deviceOrientation', forwardSpeed, turnSpeed);
});
// uncomment this for testing on desktop
// setTimeout( () => socket.emit('deviceOrientation', 10, 50), 1000 );
/**
* Get all client positions
* Host will show all
* Client will show view from just their car
* @author Jonathan Lam
*/
socket.on('updatedMap', mapData => {
map = mapData;
});
public/hostGraphics.js (main graphics file, graphics for computer screen (host)); author: Rahul Kiefer and Jonathan Lam
/**
* host graphics file
* <p>
* Critical functions: init(), animate(), render()
* @author Rahul Kiefer
*/
/**
* Use #game as base element
* width and height are global variables used for the width and height of the canvas, and are set in the resize handler
* @author Jonathan Lam
*/
var element = document.querySelector('#game'), width, height;
/**
* Event handler to update width and height on window resize (canvas resizes automatically). Also called in init() to initialize width and height.
* @author Jonathan Lam
*/
function resizeHandler() {
// update width and height
width = element.getBoundingClientRect().width;
height = element.getBoundingClientRect().height;
// update main camera aspect ratio and renderer size
camera = new THREE.PerspectiveCamera(75, width / height, 0.1, 1000);
renderer.setSize(width, height);
}
window.addEventListener('resize', resizeHandler);
/**
* Create scene and camera
* @author Rahul Kiefer
*/
var scene = new THREE.Scene();
var camera = new THREE.PerspectiveCamera(75, width / height, 0.1, 1000);
/**
* Create renderer
* @author Rahul Kiefer
*/
var renderer = new THREE.WebGLRenderer();
renderer.setSize(width, height);
element.appendChild(renderer.domElement);
/**
* Car class (a function as per JS standards). Create using 'new Car()'
* <p>
* Publicly available fields: .mesh (to change position and rotation)
* @param id The id of the car (the socketId of the client) to correctly match the client camera to the car
* @todo Make member fields private
* @return undefined
* @author Rahul Kiefer
*/
function Car(id) {
/**
* Set id of car (to attach camera to correct car on mobile)
* @author Jonathan Lam
*/
this.id = id;
/**
* Draw shape of car, and then extrude
* @author Rahul Kiefer
*/
var hoodHeight = 1.25; // height of a car's hood
var carHeight = hoodHeight + .75; // distance between ground and roof
// drawing the car shape
this.shape = new THREE.Shape();
this.shape.moveTo(0, 0);
this.shape.lineTo(0, hoodHeight); // from front bottom to front of hood
this.shape.lineTo(2, hoodHeight); // from front of hood to windshield
this.shape.lineTo(2.5, carHeight); // from bottom of windshield to top of windshield
this.shape.lineTo(4.5, carHeight); // from top of windshield to top of back window
this.shape.lineTo(5, hoodHeight); // from top of back window to bottom of back window
this.shape.lineTo(6, hoodHeight); // from bottom of back window to top of trunk
this.shape.lineTo(6, 0); // from top of trunk to bottom of trunk
this.shape.lineTo(0, 0);
// use basic extrudegeometry
this.extrudeSettings = {
steps: 1, // extrudegeometry uses one intermediate shape
amount: 3, // width of car
bevelEnabled: false, // bevel set to false to make the texture (UV) mapping easier
// bevelThickness: .5,
// bevelSize: .5,
// bevelSegments: 2,
material: 0, // first material (texture) in material array is for sides
extrudeMaterial: 1 // second material (texture) in material array is for the front, hood, windshield, top, rear windshield, rear hood, rear (and bottom)
}
this.geometry = new THREE.ExtrudeGeometry(this.shape, this.extrudeSettings);
/**
* Create materials (lambert textures) with UV mapping for custom extrude geometry
* @author Jonathan Lam
*/
// load materials
this.materials = [];
for(var i = 0; i < 2; i++) {
// texture 1 (sides) is located at /assets/map/map1.png
// texture 2 (other faces) is located at /assets/map/map2.png
var texture = new THREE.TextureLoader().load(`/assets/map/map${i+1}.png`);
if(i == 1) {
// scaling for the extrude material
// scale goes from x: 0-2, y: (-2)-1 (this is for the UV mapping to work)
texture.repeat.set(1/2, 1/3);
texture.offset.set(0, 2/3);
} else {
// scaling for the side material
// scale goes from x: 0-6, y: 0-2
texture.repeat.set(1/6, 1/2);
}
this.materials.push(new THREE.MeshLambertMaterial({ map: texture }));
}
/**
* UV mapping for the car texture
* <p>
* Brief description of UV mapping: UV mapping is a system to get a 2D image
* wrapped around a 3D shape. Luckily, this is relatively easy for objects
* with flat faces (such as this car), which means that we simply have to
* translate coordinates from the 2D "map" to the 3D geometry.
* <p>
*
* (0, 1) (2, 1) // The map is a square image with
* +--------------------+ // the labelled (U, V) coordinates.
* | | // These specific (U, V) coordinates
* | | // were made to wrap around the car.
* | |
* | |
* | |
* | |
* +--------------------+
* (0, -2) (2, -2)
*
* <p>
* Different 3D triangular "faces" of the car geometry, numbered 12-25, were
* programatically mapped to the corresponding (U, V) coordinates on the
* map.
* <p>
* Made with a LOT of painstaking trial-and-error. =/ I thought this
* deserves its own special comment.
* @author Jonathan Lam
*/
// no change to sides (faceVertexUvs indeces 0-11)
// no change to bottom (faceVertexUvs indeces 26-27)
// side lengths correspond to the lengths of the sides of the car's Shape
var sideLengths = [ 0, 1.25, 2, Math.sqrt(0.5*0.5 + 0.75*0.75), 2, Math.sqrt(0.5*0.5 + 0.75*0.75), 1, 1.25 ];
// cumulative lengths correspond to the length of the sides from the start of the car's Shape
var cumulativeLengths = sideLengths.map((e, index) => sideLengths.slice(0, index+1).reduce((accumulator, value) => accumulator + value));
// positions correspond to the scaled version of the cumulative lengths for the UV map
var positions = cumulativeLengths.map(length => length / cumulativeLengths[cumulativeLengths.length-1] * 2);
// start from front, go to back (index 25 is front, index 14 is back)
for(var i = 25; i >= 12; i--) {
// generate correct set of UV map points in points array
var points;
// even face numbers
if(i % 2 == 0) {
points = [
{ x: positions[(25-i-1) / 2 + 1], y: 1 },
{ x: positions[(25-i-1) / 2], y: 1 },
{ x: positions[(25-i-1) / 2 + 1], y: -2 },
];
}
// odd face numbers
else {
points = [
{ x: positions[(25-i) / 2], y: 1 },
{ x: positions[(25-i) / 2], y: -2 },
{ x: positions[(25-i) / 2 + 1], y: -2 },
];
}
// add uv map to geometry
this.geometry.faceVertexUvs[0][i] = points;
}
/**
* Create mesh and add to scene
* @author Rahul Kiefer
*/
this.mesh = new THREE.Mesh(this.geometry, this.materials);
scene.add(this.mesh);
/**
* Attach a camera to a car when car joins
* Called in updateCars()
* @author Jonathan Lam
*/
this.addCamera = camera => {
this.camera = camera;
this.mesh.add(camera);
};
/**
* Remove a car and its associated camera when car leaves
* Called in updateCars()
* @author Jonathan Lam
*/
this.remove = () => {
this.mesh.remove(this.camera);
scene.remove(this.mesh);
};
}
// initial car at 0,0 for testing and as a reference point
// remove in production code
// var car = new Car();
/**
* Creating multiple views
* @todo Make this programatically instead of hardcoding it in, explain position and rotation metrics
* @author Jonathan Lam
*/
var views = [
// car 1: left top [currently: viewing car from front *FIX*]
{
left: 0,
top: 0,
width: 0.5,
height: 0.5,
// position: [3, -15, 1.5], rotation: [Math.PI/2, 0, 0], // BOTTOM (for debug)
// position: [-10, 1, 1.5], rotation: [0, -Math.PI/2, 0],// FRONT (for debug)
// position: [3, 15, 1.5], rotation: [-Math.PI/2, 0, 0], // TOP (for debug)
// position: [3, 1, 15], rotation: [0, 0, 0], // SIDE (for debug)
// position: [20, 1, 1.5], rotation: [0, Math.PI/2, 0], // BACK (for debug)
position: [20, 3, 1.5], rotation: [0, Math.PI/2, 0], // NORMAL (for prod)
fov: 30,
enabled: true
},
// car 2: right top (looking down on car from above)
{
left: 0.5,
top: 0,
width: 0.5,
height: 0.5,
position: [20, 3, 1.5],
rotation: [0, Math.PI/2, 0],
fov: 30
},
// car 3: left bottom
{
left: 0,
top: 0.5,
width: 0.5,
height: 0.5,
position: [20, 3, 1.5],
rotation: [0, Math.PI/2, 0],
fov: 30
},
// car 4: right bottom
{
left: 0.5,
top: 0.5,
width: 0.5,
height: 0.5,
position: [20, 3, 1.5],
rotation: [0, Math.PI/2, 0],
fov: 30
}
];
/**
* updateCars() function
* This is called every time a user enters leaves (upon the 'updateNames' message from socket.io (see /public/js/game.js))
* @return undefined
* @author Jonathan Lam
*/
// map and car arrays to map (client positions) and cars (Car objects)
var map = [];
var cars = [];
// updateCars function
function updateCars() {
// remove all cars ("reset" array)
for(var i = 0; i < cars.length; i++) {
cars[i].remove();
}
cars = [];
// make new cars ("refresh" the array)
for(var i = 0; i < map.length; i++) {
var car = new Car(map[i].socketId);
// x and y are coordinates on flat plane in server
// x and z are coordinates on flat plane in three.js
car.mesh.position.x = map[i].x;
car.mesh.position.z = map[i].y;
car.mesh.position.y = map[i].z;
car.addCamera(views[i].camera);
cars.push(car);
}
// disable all views after view 1 that are enabled
// i.e., the first view is default, even if no cars; the others are triggered by multiple people entering the game
for(var i = 1; i < views.length; i++) {
views[i].enabled = i < cars.length;
}
/**
* Set views appropriate to number of cars
* <p>
* One car or no cars: full screen +---------+
* | |
* | |
* | 1 |
* | |
* | |
* +---------+
* <p>
* Two cars: half screen horizontally +----+----+
* | | |
* | | |
* | 1 | 2 |
* | | |
* | | |
* +----+----+
* <p>
* Three cars: half screen top, bottom center +----+----+
* | 1 | 2 |
* | | |
* +--+-+-+--+
* | | 3 | |
* | | | |
* +--+---+--+
* <p>
* Four cars: 2 on top, two on bottom +----+----+
* | 1 | 2 |
* | | |
* +----+----+
* | 3 | 4 |
* | | |
* +----+----+
* <p>
* This layout was designed to maximize screen usage, keep aspect ratio reasonable, and keep the same size/AR for all clients.
* @author Jonathan Lam
*/
switch(cars.length) {
case 0:
case 1:
// if no cars or one car, set full-screen
views[0].width = 1.0;
views[0].height = 1.0;
break;
case 2:
// if two cars, set side by side
views[0].width = views[1].width = 0.5;
views[0].height = views[1].height = 1.0;
views[1].left = 0.5;
break;
case 3:
// if three or four cars, set to one-quarter screen size
views[0].width = views[1].width = views[2].width = 0.5;
views[0].height = views[1].height = views[3].height = 0.5;
views[1].left = 0.5;
views[2].top = 0.5;
views[2].left = 0.25;
break;
case 4:
views[0].width = views[1].width = views[2].width = views[3].width = 0.5;
views[0].height = views[1].height = views[3].height = views[3].height = 0.5;
views[1].left = 0.5;
views[2].top = 0.5;
views[2].left = 0.0;
views[3].top = 0.5;
views[3].left = 0.5;
break;
}
}
/**
* init() function to set up views, objects
* @return undefined
* @author Rahul Kiefer
*/
function init() {
// initialize width and height
resizeHandler();
// create a camera for every view, using views array values
for(var view of views) {
var camera = new THREE.PerspectiveCamera(view.fov, width/height, 0.1, 7500);
camera.position.fromArray(view.position);
camera.rotation.fromArray(view.rotation);
view.camera = camera;
}
/**
* Create skybox (side length of 5000)
* Example used for template: stemkoski.github.io/Three.js/Skybox.html
* @todo Change images to match theme
* @author Jonathan Lam
*/
var imagePrefix = '/assets/dawnmountain-';
var directions = [ 'xpos', 'xneg', 'ypos', 'yneg', 'zpos', 'zneg' ];
var imageSuffix = '.png';
var skyGeometry = new THREE.CubeGeometry(5000, 5000, 5000);
var materialArray = [];
for (var i = 0; i < 6; i++) {
materialArray.push(new THREE.MeshBasicMaterial({
map: new THREE.TextureLoader().load(imagePrefix + directions[i] + imageSuffix),
side: THREE.BackSide
}));
}
var skyMaterial = materialArray;
var skyBox = new THREE.Mesh(skyGeometry, skyMaterial);
scene.add(skyBox);
/**
* Create spot light (sun, directly above)
* @author Rahul Kiefer
*/
var spotLight = new THREE.PointLight( 0xffffff );
spotLight.position.set(0, 1000, 0);
spotLight.shadow.camera.near = 500;
spotLight.shadow.camera.far = 10000;
scene.add(spotLight);
/**
* Create ambient light (is this necessary?)
* @todo Remove?
* @author Rahul Kiefer
*/
var ambLight = new THREE.AmbientLight(0xf5f5f5); //soft white light
scene.add(ambLight);
/**
* Create the floor
* @author Rahul Kiefer
*/
var floorTexture = new THREE.TextureLoader().load('/assets/grass_texture.jpg');
floorTexture.wrapS = floorTexture.wrapT = THREE.RepeatWrapping;
floorTexture.repeat.set(50, 50);
var floorMaterial = new THREE.MeshBasicMaterial( { map: floorTexture, side: THREE.DoubleSide } ); //floor looks better as a MeshBasicMaterial
var floorGeometry = new THREE.PlaneGeometry(5000, 5000, 10, 10); //floor is 5000x5000 to match skybox
var floor = new THREE.Mesh(floorGeometry, floorMaterial);
floor.rotation.x = Math.PI / 2;
scene.add(floor);
/**
* Creating race track from path
* @author Rahul Kiefer
*/
// race track as a fat line
// var trackPositions = [
// (150,50),
// (150,150),
// (100,175),
// (50,150),
// (50,50),
// (100,25),
// (150,50)
// ];
//
// var trackGeo = new THREE.LineGeometry();
//
// trackGeo.setPositions(trackPositions);
//
// matLine = new THREE.LineMaterial( {
// color: 0xffffff,
// linewidth: 50, //in px
// vertexColors: THREE.vertexColors,
// dashed: false
// } );
//
// raceTrack = new THREE.Line2(trackGeo, matLine);
// raceTrack.computeLineDistances();
// raceTrack.scale.set(1, 1, 1);
// scene.add(raceTrack);
/*
var track = new THREE.Shape();
track.moveTo(150,50);
track.lineTo(150,150);
track.quadraticCurveTo(150,175,100,175);
track.quadraticCurveTo(50,175,50,150);
track.lineTo(50,50);
track.quadraticCurveTo(50,25,100,25);
track.quadraticCurveTo(150,25,150,50);
var trackExtrudeSettings = {
amount: 5,
bevelEnabled: false,
bevelSegments: 2,
steps: 1,
bevelSize: 1,
bevelThickness: 1
};
var trackTexture = new THREE.TextureLoader().load('/assets/blacktop_texture.jpg');
trackTexture.wrapS = trackTexture.wrapT = THREE.RepeatWrapping;
trackTexture.repeat.set( 1, 1 );
var trackMaterial = new THREE.MeshBasicMaterial( {map: trackTexture, side: THREE.DoubleSide} );
var trackGeometry = new THREE.ExtrudeGeometry(track, trackExtrudeSettings);
var raceTrackMesh = new THREE.Mesh( trackGeometry, trackMaterial );
raceTrackMesh.rotation.x = Math.PI / 2;
raceTrackMesh.position.y = 0.01; //barely above the ground
scene.add(raceTrackMesh);
*/
var track = new THREE.Shape();
track.moveTo(150,-2500);
track.lineTo(150,2500);
track.lineTo(100,2500);
track.lineTo(100,-2500);
track.lineTo(150,-2500);
var trackExtrudeSettings = {
amount: 5,
bevelEnabled: false,
bevelSegments: 2,
steps: 1,
bevelSize: 1,
bevelThickness: 1
};
var trackTexture = new THREE.TextureLoader().load('/assets/blacktop_texture.jpg');
trackTexture.wrapS = trackTexture.wrapT = THREE.RepeatWrapping;
trackTexture.repeat.set( 1, 1 );
var trackMaterial = new THREE.MeshBasicMaterial( {map: trackTexture, side: THREE.DoubleSide} );
var trackGeometry = new THREE.ExtrudeGeometry(track, trackExtrudeSettings);
var raceTrackMesh = new THREE.Mesh( trackGeometry, trackMaterial );
raceTrackMesh.rotation.x = Math.PI / 2;
raceTrackMesh.position.y = 0.01; //barely above the ground
scene.add(raceTrackMesh);
}
/**
* Function animate() to run the animation
* This is run on every frame, by window.requestAnimationFrame()
* @return undefined
* @author Rahul Kiefer
*/
function animate() {
// update coordinates of cars
for(var i = 0; i < map.length; i++) {
if(cars[i]) {
// see note above for switched z and y
cars[i].mesh.position.x = map[i].x;
cars[i].mesh.position.z = -map[i].y;
cars[i].mesh.position.y = map[i].z;
cars[i].mesh.rotation.y = map[i].heading;
}
}
// render views
render();
// wait until canvas ready to render
requestAnimationFrame(animate);
}
/**
* render() function to render the scene by setting up each viewport (camera) as appropriate
* @author Jonathan Lam
*/
function render() {
for(var view of views) {
// if disabled, skip
if(!view.enabled) continue;
var camera = view.camera;
// set viewport
var viewLeft = Math.floor(width * view.left);
var viewTop = Math.floor(height * view.top);
var viewWidth = Math.floor(width * view.width);
var viewHeight = Math.floor(height * view.height);
renderer.setViewport(viewLeft, viewTop, viewWidth, viewHeight);
renderer.setScissor(viewLeft, viewTop, viewWidth, viewHeight);
renderer.setScissorTest(true);
renderer.setClearColor(view.background);
// update camera
camera.aspect = viewWidth/viewHeight;
camera.updateProjectionMatrix();
// render view
renderer.render(scene, camera);
}
}
// initialize the scene (both for clients and host)
init();
// begin the simulation/animation/game
animate();
public/graphics/clientGraphics.js (secondary graphics file for mobile screen (client)); author: Rahul Kiefer and Jonathan Lam
/**
* client graphics file
* <p>
* Critical functions: render() (overwrite the one in hostGraphics)
* Initialization is already set up in the main graphics file
* @author Jonathan Lam
*/
/**
* Function overwriteRender to overwrite the main render function for a client
* device.
* <p>
* This is called when the user's car is created (after the first updateCars()
* in the 'updateNames' websocket event). It replaces the four-car view with a
* simple view from the windshield of the client's car.
* @param id socketId of the client; used to match the car
* @return none
* @author Jonathan Lam
*/
function overwriteRender(id) {
// create camera
var camera = new THREE.PerspectiveCamera(30, width/height, 0.1, 20000);
camera.position.set(0, 3, 1.5);
camera.rotation.set(0, Math.PI/2, 0);
// attach camera to car (match socket ids)
cars.find(car => car.id === id).addCamera(camera);
// simple, single camera full-screen viewport
render = function() {
renderer.setViewport(0, 0, width, height);
renderer.render(scene, camera);
};
}
public/css/main.css (global CSS rules); author: Jonathan Lam
/**
* Generic page style
* Applies to both index.html and game.html
*/
/**
* Import source code pro monospace font for use
* @author Jonathan Lam
*/
@import url('https://fonts.googleapis.com/css?family=Source+Code+Pro');
/**
* Set basic styles for all elements and html, body
* @author Jonathan Lam
*/
* {
box-sizing: border-box;
}
html, body {
margin: 0;
height: 100%;
font-size: 16px;
font-family: source code pro, monospace;
}
a, button, select, input {
outline: none;
border: none;
font-size: inherit;
font-family: inherit;
color: inherit;
}
button, input {
border: none;
padding: 1em;
}
input {
background-color: #eee;
}
public/css/index.css (CSS rules for landing page); author: Jonathan Lam
/**
* Styles for homepage
* Applies to index.html
*/
/**
* Put computer and smartphone divs side by side
* @author Jonathan Lam
*/
body {
display: flex;
flex-direction: row;
background-image: url('/assets/loading_bg.png');
background-position: center;
background-size: cover;
color: white;
}
#infoLink {
display: block;
position: absolute;
top: 1em;
left: 1em;
padding: 0.5em;
cursor: pointer;
}
.deviceTypeContainer {
flex-grow: 1;
flex-basis: 50%;
display: flex;
flex-direction: column;
justify-content: center;
padding: 3em;
font-size: 1.25em;
background-color: rgba(50, 50, 50, 0.8);
}
.deviceTypeIcon {
font-size: 10em;
text-align: center;
}
.deviceTypeHeader {
text-align: center;
}
.deviceTypeContainer.recommended {
background-color: rgba(0, 0, 0, 0.3);
}
.deviceTypeContainer.recommended::before {
content: 'RECOMMENDED';
font-size: 2em;
margin-bottom: -1em;
text-align: center;
display: block;
position: relative;
top: -1em;
}
#joinGameContainer {
display: flex;
flex-direction: row;
}
#joinGameId {
flex-grow: 5;
}
#joinGame {
flex-grow: 1;
}
button, input {
background-color: #222;
border-radius: 0.25em;
cursor: pointer;
}
public/css/host.css (CSS rules for host in gameplay): author: Rahul Kiefer and Jonathan Lam
/**
* Styling for the host
* Applies to game.html
*/
/**
* Make body a flex element for easy alignment of controls and canvas
* @author Jonathan Lam
*/
body {
display: flex;
flex-direction: column;
}
/**
* General class for centered vertical align (used for controls)
* @author Jonathan Lam
*/
.vCenter {
display: flex;
flex-direction: column;
justify-content: center;
}
/**
* styling the controls
* @author Jonathan Lam
*/
#controls {
flex: 0 1 0;
display: flex;
flex-direction: row;
flex-basis: 4em;
background-color: black;
color: white;
}
#homeLink {
flex-basis: 2em;
font-size: 2em;
padding: 0.5em;
transition: background-color 0.2s;
}
#homeLink:hover {
background-color: darkgrey;
}
#gameIdContainer {
flex: 1 0 0;
}
#gameIdInnerContainer {
width: 100%;
text-align: center;
font-size: 1.5em;
}
.gameIdChar {
display: inline-block;
margin: 0 0.125em;
padding: 0.25em;
width: 1.5em;
text-align: center;
background-color: darkgrey;
color: white;
border-radius: 0.125em;
}
/**
* styling the canvas and names
* @author Rahul Kiefer
*/
canvas {
width: 100% !important;
height: 100% !important;
display: block;
}
#game {
flex: 1 0 0;
overflow: hidden;
}
#names {
width: 0;
}
.name {
position: absolute;
display: inline-block;
color: black;
padding: 0.5em;
font-size: 1.5em;
background-color: rgba(255, 255, 255, 0.5);
border-radius: 0.125em;
}
public/css/client.css (CSS rules for client in gameplay); author: Jonathan Lam
/**
* Styling for the game client (driver)
* Applies to game.html
*/
/**
* Hide #names, #gameIdContainer (only necessary for host)
* @author Jonathan Lam
*/
#controls.mobile > #names,
#controls.mobile > #gameIdContainer {
display: none;
}
/**
* Make back button smaller
* @author Jonathan Lam
*/
#controls.mobile {
flex: 0 0 0;
}
#controls.mobile > #homeLink {
width: 2em;
height: 2em;
position: absolute;
top: 1em;
left: 1em;
font-size: 3em;
border-radius: 100%;
background-color: rgba(0, 0, 0, 0.25);
}
#controls.mobile > #homeLink:active {
background-color: transparent;
}
Assets:
public/assets/map/map1.png (UV map of car sides); author: Jonathan Lam
public/assets/map/map2.png (UV map of car top); author: Jonathan Lam
public/assets/blacktop_texture.jpg; downloaded from Internet
public/map/dawnmountain-*.png (multiple files); downloaded from Internet
public/assets/grass_texture.jpg; downloaded from Internet
public/assets/loading_bg.jpg; author: Jonathan Lam
